Chipset
- GPU Manufacturer: NVIDIA
- GPU Chipset: GeForce RTX 5090
- Form Factor: Full Height
- Overclocked: Yes
- CUDA Processors: 21760
- PCIe Bandwidth: PCIe 5.0 x16
- Max Monitors Supported: 4
- Boost Core Clock Speed: 2610MHz
Memory
- Video Memory: 32 GB
- Memory Type: GDDR7
- Memory Bus: 512-bit
General Specifications
- Color: Black
- PCB Color: Black
- LED Color: RGB Illuminated
- Cooling: Liquid
- VR Ready: Yes
- HDCP Support: HDCP 2.3
- DirectX Support: DirectX 12
- OpenGL Support: OpenGL 4.6
- Features: NVIDIA DLSS 4
Ports & Connectors

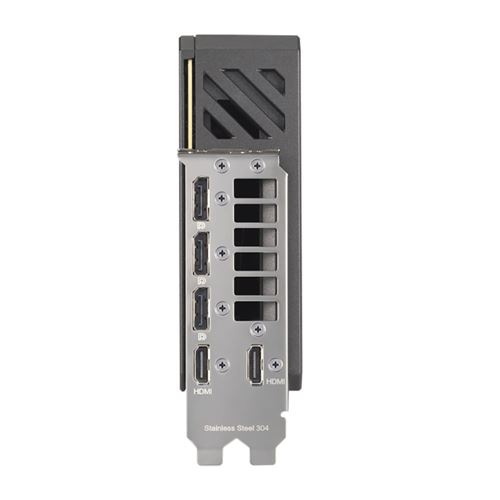

- DisplayPort: 3 x DisplayPort 2.1b
- HDMI: 1 x HDMI 2.1b
System Requirements
- Slot Width: Triple Slot
- Interface: PCIe 5.0
Thermal & Power
- Power Connector: 1 x 16-pin
- Recommended Power Supply: 1000 Watts
Physical Specifications
- Video Card Length: 11.36 in. (288.46 mm)
- Width: 2.4 Slot; 1.89 in. (48.00 mm)
- Height: 6.05 in. (153.70 mm)
Warranty
- Parts: 3 Years Limited
- Labor: 3 Years Limited
